Flanged Ball Valve

Flanged Ball Valve

Specifications

• Size Range ^*

  1/2” - 6”

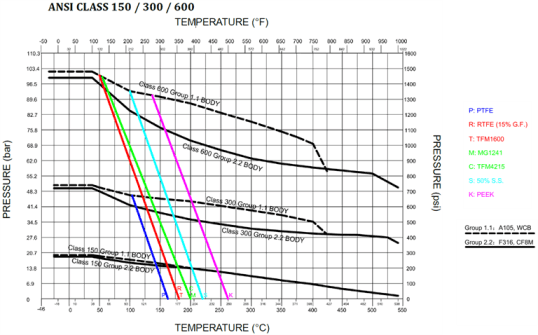

• Flange Type/Rating ^*

  ASME / ANSI Class 150 - 600
  AS2129 Table D, Table E

• Design

  ASME B16.34

• Body Material ^*

  CF8M / F316 / WCB / A105

• Seat material ^*

  PTFE / RTFE

• Temperature Range

  -29°C to 200°C

• Face to Face

  ASME B16.10

• Testing

  API 598

• Options

  Lockable handle & stem extension available upon request.
  Gear Box or Rack & Pinion actuator is upon on request.
